Avdel Tools / Rivet Guns / Breakstem and Lock-bolt Tooling / 722 Series Rivet Tool

722 Series Rivet Tool

Breakstem and Lock-bolt Tooling by Avdel

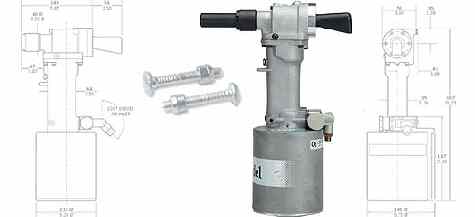

Avdel 722 Series Rivet Tool

Avdel's 722 Series rivet tool is a heavy-duty cast-iron hydro-pneumatic power tool capable of withstanding the toughest applications and production lines. The Avdel 722 Series rivet tool has been designed to be quick-to-use and operator-friendly - reducing fatigue during consistent high quality installation. The Avdel 722 Series rivet tool can be used with various nose assemblies allowing installation of an assortment of fastenings.

Avdel 722 Series Rivet Tool Specs

Specifications:

  • Air Supply Pressure (bar) - 5.4 - 8.5
  • Cycle Time (secs) - 3
  • Free Air Volume (litres) - 14.6
  • Length (mm) without nose equipment - 213 (8.37in)
  • Noise Level dB(A) - 72
  • Overall Height (mm) - 387 (15.25in)
  • Overall Width (mm) base and air supply hose - 146 (5.75in)
  • Pull Force (kN) - 26.7 (6000lbf)
  • Stroke (mm) - 19 (0.75in)
  • Weight (kg, without nose equipment) - 5.0 (11lbs)

Avdel 722 Series Rivet Tool Benefits

Benefits:

  • Cast aluminium tool body for heavy duty use over long periods of time
  • Place Avdelok structural lockbolts from 4.8mm (3/16") to 9.6mm (3/8") and 9.6mm (3/8") steel Monobolt
  • Quick and simple to operate, minimizing operator fatigue and reducing assembly time
  • Wide choice of nose assemblies to suit varying application requirements, including softer materials and wood

Avdel 722 Series Rivet Tool Placing Capabilities

Call us at (866)748-3876 if you have questions about placing capabilities for the Avdel 722 Series rivet tool.

Placing Capabilities
Fastener Brand Size nG4 71255 7220 7287 734
Avbolt
  • 4.8 (3/16")
  • 6.4 (1/4")
  • 8.0 (5/16")
  • 10.0 (3/8")
  • 16.0 (5/8")
  • not supported
  • not supported
  • not supported
  • not supported
  • not supported
  • not supported
  • not supported
  • not supported
  • not supported
  • not supported
  • supported
  • supported
  • supported
  • not supported
  • not supported
  • supported
  • supported
  • supported
  • not supported
  • not supported
  • not supported
  • not supported
  • supported
  • supported
  • supported
Avdelok
  • 4.8 (3/16")
  • 6.4 (1/4")
  • 8.0 (5/16")
  • 9.6 (3/8")
  • supported
  • supported
  • not supported
  • not supported
  • supported
  • supported
  • not supported
  • not supported
  • supported
  • supported
  • supported
  • supported
  • supported
  • supported
  • supported
  • supported
  • not supported
  • not supported
  • not supported
  • supported
Avdelok LD
  • 12.7 (1/2")
  • 15.9 (5/8")
  • 19.1 (3/4")
  • 22.2 (7/8")
  • 25.4 (1")
  • 28.6 (1 1/8")
  • not supported
  • not supported
  • not supported
  • not supported
  • not supported
  • not supported
  • not supported
  • not supported
  • not supported
  • not supported
  • not supported
  • not supported
  • not supported
  • not supported
  • not supported
  • not supported
  • not supported
  • not supported
  • not supported
  • not supported
  • not supported
  • not supported
  • not supported
  • not supported
  • supported
  • supported
  • supported
  • supported
  • supported
  • supported
Avtainer
  • 10.0 (3/8")
  • supported
  • not supported
  • not supported
  • supported
  • not supported
Maxlok
  • 4.8 (3/16")
  • 6.4 (1/4")
  • supported
  • supported
  • supported
  • supported*
  • not supported
  • not supported
  • supported
  • supported
  • not supported
  • not supported
  • * = Support for Aluminum only
