71401 & 71404 Genesis nG2-S Rivet Tools

Genesis Range Fastener Tooling by Avdel

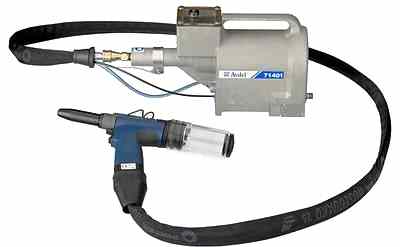

Avdel 71401 & 71404 Genesis nG2-S Rivet Tool

Avdel's 71401 & 71404 Genesis nG2-S rivet tool is the lightest of Avdel's rivet tools in the nGenesis range; this combined with a quick cycle-time leads to decreased operator fatigue. Avdel's 71401 & 71404 Genesis nG2-S rivet tools also have the option of a quick-release stem bottle, speeding up the riveting process dramatically. The nG2-S is a split tool featuring a remote intensifier which act to lighten the rivet tool and in turn increases ease of use and reduced fatigue during usage.

Avdel 71401 & 71404 Genesis nG2-S Rivet Tool Specs

Specifications:

  • Air supply pressure 5- 7 bar
  • Cycle time (approx.) 1 sec
  • Free air volume @ 5.5 bar 3.6 litres
  • Intensifier ratio 44:1
  • Noise level <75 dB(A)
  • Pull force @ 5.5 bar 10.88 kN
  • Stroke (min.) 17 mm
  • Vibration <m/s2
  • Weight (Head weight, with equipment) 1.2 kg

Avdel 71401 & 71404 Genesis nG2-S Rivet Tool Benefits

Benefits:

  • Ergonomic
  • High placement speed
  • Minimized air consumption
  • Places a wide range of fasteners
  • Reduced setting times and change of equipment
  • Reduced time to empty stem collector
  • Reduces operator fatigue
  • Robust tool

Avdel 71401 & 71404 Genesis nG2-S Rivet Tool Placing Capabilities

Call us at (866)748-3876 if you have questions about placing capabilities for the Avdel 71401 & 71404 Genesis nG2-S rivet tool.

Placing Capabilities:
Material Fastener Brand Size
Aluminum Alloy Avdel SR
  • 3.2 (1/8")
  • 4.0 (5/32")
  • 4.8 (3/16")
Avex
  • 3.0
  • 3.2 (1/8")
  • 4.0 (5/32")
  • 4.8 (3/16")
Avseal II
  • 4.0
  • 5.0
  • 6.0
  • 7.0
Bulbex
  • 4.0 (5/32")
  • 4.8 (3/16")
Interlock
  • 4.8 (3/16")
Klamp-Tite (non-structural)
  • 4.8 (3/16")
Klamp-Tite (structural)
  • 4.8 (3/16")
Monobolt
  • 4.8 (3/16")
Q Rivet
  • 3.2 (1/8")
  • 4.0 (5/32")
  • 4.8 (3/16")
Standard Breakstem BD Series, N Rivet
  • 3.2 (1/8")
  • 4.0 (5/32")
  • 4.8 (3/16")
Copper Avdel SR
  • 3.2 (1/8")
  • 4.0 (5/32")
  • 4.8 (3/16")
Standard Breakstem BD Series, N Rivet
  • 3.2 (1/8")
  • 4.0 (5/32")
  • 4.8 (3/16")
Stainless Steel Avdel SR
  • 3.2 (1/8")
  • 4.0 (5/32")
  • 4.8 (3/16")
Avinox
  • 3.2 (1/8")
  • 4.0 (5/32")
  • 4.8 (3/16")
Monobolt
  • 4.8 (3/16")
Q Rivet
  • 3.2 (1/8")
  • 4.0 (5/32")
  • 4.8 (3/16")
Stavex
  • 3.2 (1/8")
  • 4.0 (5/32")
  • 4.8 (3/16")
Standard Breakstem BD Series, N Rivet
  • 3.2 (1/8")
  • 4.0 (5/32")
  • 4.8 (3/16")
Steel Avdel SR
  • 3.2 (1/8")
  • 4.0 (5/32")
  • 4.8 (3/16")
Avex Splined
  • 4.0 (5/32")
  • 4.8 (3/16")
Avibulb
  • 3.2 (1/8")
  • 4.0 (5/32")
  • 4.8 (3/16")
Earth Tab Rivet
  • 4.8 (3/16")
Interlock
  • 4.8 (3/16")
Monobolt
  • 4.8 (3/16")
Q Rivet
  • 3.2 (1/8")
  • 4.0 (5/32")
  • 4.8 (3/16")
Stavex
  • 3.2 (1/8")
  • 4.0 (5/32")
  • 4.8 (3/16")
T-Lok
  • 4.3
  • 4.8 (3/16")
Standard Breakstem BD Series, N Rivet
  • 3.0
  • 3.2 (1/8")
