71224 Genesis nG3 Rivet Tool

Genesis Range Fastener Tooling by Avdel

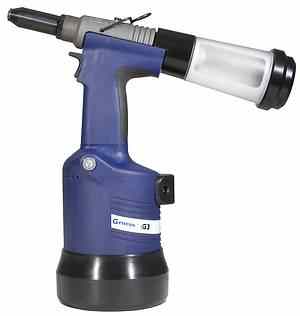

Avdel 71224 Genesis nG3 Rivet Tool

Avdel's 71224 Genesis nG3 rivet tool allows the placement of a large range of breakstem rivets, lockbolts and sealing plug sizes. With the Avdel 71224 Genesis nG3 rivet tool's intergrated counter this tool can be used for a variety of applications enabling you to keep track of your progress.

Avdel's 71224 Genesis nG3 rivet tool has been designed to make placing rivets easier. It is light-weight rivet tool with a soft-touch rubber grip which reduces fatigue. Avdel's 71224 Genesis nG3 rivet tool also has a toughened body gives the tool an enhanced life span.

Avdel 71224 Genesis nG3 Rivet Tool Specs

Specifications:

  • Air supply pressure 5- 7 bar (80-100 psi)
  • Cycle time (approx.) 1.2 sec
  • Free air volume @ 5.5 bar 4.3 litres
  • Noise level <75 dB(A)
  • Pull force @ 5.5 bar 12.9 kN (2900 lbf)
  • Stroke (min.) 26 mm (1.02 in)
  • Vibration <2.5m/s2
  • Weight (with equipment) 2.3 kg (5.1 lbs)

Avdel 71224 Genesis nG3 Rivet Tool Benefits

Benefits:

  • Ergonomic
  • High placement speed
  • Minimized air consumption
  • Places a wide range of fasteners
  • Reduces operator fatigue
  • Robust tool

Avdel 71224 Genesis nG3 Rivet Tool Placing Capabilities

Call us at (866)748-3876 if you have questions about placing capabilities for the Avdel 71213 & 71214 Genesis nG2 rivet tool.

Placing Capabilities
Material Fastener Brand Size
Aluminum Alloy Avdel SR
  • 3.2 (1/8")
  • 4.0 (5/32")
  • 4.8 (3/16")
  • 6.4 (1/4")
Avdelmate
  • 4.8 (3/16")
  • 6.4 (1/4")
Avex
  • 3.0
  • 3.2 (1/8")
  • 4.0 (5/32")
  • 4.8 (3/16")
  • 6.4 (1/4")
Avseal II
  • 6.0
  • 7.0
  • 8.0
  • 9.0
Bulbex
  • 4.0 (5/32")
  • 4.8 (3/16")
Interlock
  • 4.8 (3/16")
  • 6.4 (1/4")
Klamp-Tite (non-structural)
  • 4.8 (3/16")
  • 6.4 (1/4")
Klamp-Tite (structural)
  • 4.8 (3/16")
  • 6.4 (1/4")
Monobolt
  • 4.8 (3/16")
  • 6.4 (1/4")
Q Rivet
  • 3.2 (1/8")
  • 4.0 (5/32")
  • 4.8 (3/16")
  • 6.4 (1/4")
Standard Breakstem BD Series, N Rivet
  • 3.2 (1/8")
  • 4.0 (5/32")
  • 4.8 (3/16")
  • 6.4 (1/4")
Copper Avdel SR
  • 3.2 (1/8")
  • 4.0 (5/32")
  • 4.8 (3/16")
Standard Breakstem BD Series, N Rivet
  • 3.2 (1/8")
  • 4.0 (5/32")
  • 4.8 (3/16")
Stainless Steel Avdel SR
  • 3.2 (1/8")
  • 4.0 (5/32")
  • 4.8 (3/16")
Avinox
  • 3.2 (1/8")
  • 4.0 (5/32")
  • 4.8 (3/16")
Monobolt
  • 4.8 (3/16")
  • 6.4 (1/4")
Q Rivet
  • 3.2 (1/8")
  • 4.0 (5/32")
  • 4.8 (3/16")
  • 6.4 (1/4")
Stavex
  • 3.2 (1/8")
  • 4.0 (5/32")
  • 4.8 (3/16")
Standard Breakstem BD Series, N Rivet
  • 3.2 (1/8")
  • 4.0 (5/32")
  • 4.8 (3/16")
  • 6.4 (1/4")
Steel Avdel SR
  • 3.2 (1/8")
  • 4.0 (5/32")
  • 4.8 (3/16")
Avdelmate
  • 4.8 (3/16")
  • 6.4 (1/4")
Avex Splined
  • 4.0 (5/32")
  • 4.8 (3/16")
Avibulb
  • 3.2 (1/8")
  • 4.0 (5/32")
  • 4.8 (3/16")
  • 6.0
Avtainer
  • 10.0 (3/8")
Earth Tab Rivet
  • 4.0 (5/32")
Interlock
  • 4.8 (3/16")
  • 6.4 (1/4")
Monobolt
  • 4.8 (3/16")
  • 6.4 (1/4")
Q Rivet
  • 3.2 (1/8")
  • 4.0 (5/32")
  • 4.8 (3/16")
  • 6.4 (1/4")
Stavex
  • 3.2 (1/8")
  • 4.0 (5/32")
  • 4.8 (3/16")
  • 6.4 (1/4")
T-Lok
  • 4.3
  • 4.8 (3/16")
Standard Breakstem BD Series, N Rivet
  • 3.2 (1/8")
  • 4.0 (5/32")
  • 4.8 (3/16")
  • 6.4 (1/4")
