71213 & 71214 Genesis nG2 Rivet Tools

Genesis Range Fastener Tooling by Avdel

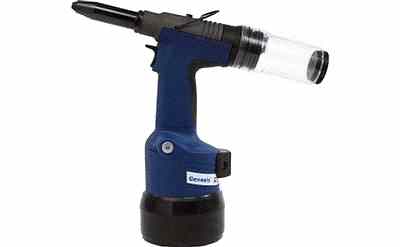

Avdel 71213 & 71214 Genesis nG2 Rivet Tool

Avdel's 71213 & 71214 Genesis nG2 rivet tools has the quickest cycle-time in the nGenesis range series of rivet tools. With an intergral cycle counter to count the number of placings and the ability to take a wide range of rivet sizes Avdel's 71213 & 71214 Genesis nG2 rivet tools is a valuable rivet tool in the range.

The nG2 has been designed for rough assembly lines featuring a toughened-plastic body and heavy-duty rubber base, giving Avdel's 71213 & 71214 Genesis nG2 rivet tools an enhanced tool life.

Avdel 71213 & 71214 Genesis nG2 Rivet Tool Specs

Specifications:

  • Air supply pressure 5-7 bar (80-100 psi)
  • Cycle time (approx.) 0.8 sec
  • Free air volume @ 5.5 bar 2.1 litres
  • Noise level <75 dB(A)
  • Pull force @ 5.5 bar 9.34 kN (2100 lbf)
  • Stroke (min.) 17 mm (0.67 in)
  • Vibration <2.5m/s2
  • Weight (with nose equipment) 2.1 kg (4.5 lbs)
  • Weight (without nose equipment) 1.98 kg (4.37 lbs)

Avdel 71213 & 71214 Genesis nG2 Rivet Tool Benefits

Benefits:

  • Ergonomic
  • High placement speed
  • Minimized air consumption
  • Places a wide range of fasteners
  • Reduced operator fatigue
  • Robust tool
  • Reduced setting times and change of equipment
  • Reduced time-to-empty stem collector

Avdel 71213 & 71214 Genesis nG2 Rivet Tool Placing Capabilities

Call us at (866)748-3876 if you have questions about placing capabilities for the Avdel 71213 & 71214 Genesis nG2 rivet tool.

Placing Capabilities
Material Fastener Brand Size
Aluminum Alloy Avdel SR
  • 3.2 (1/8")
  • 4.0 (5/32")
  • 4.8 (3/16")
Avex
  • 3.0
  • 3.2 (1/8")
  • 4.0 (5/32")
  • 4.8 (3/16")
Avseal II
  • 4.0
  • 5.0
  • 6.0
  • 7.0
Bulbex
  • 4.0 (5/32")
  • 4.8 (3/16")
Interlock
  • 4.8 (3/16")
Klamp-Tite (non-structural)
  • 4.8 (3/16")
Klamp-Tite (structural)
  • 4.8 (3/16")
Monobolt
  • 4.8 (3/16")
Q Rivet
  • 3.2 (1/8")
  • 4.0 (5/32")
  • 4.8 (3/16")
Standard Breakstem BD Series, N Rivet
  • 3.2 (1/8")
  • 4.0 (5/32")
  • 4.8 (3/16")
Copper Avdel SR
  • 3.2 (1/8")
  • 4.0 (5/32")
  • 4.8 (3/16")
Standard Breakstem BD Series, N Rivet
  • 3.2 (1/8")
  • 4.0 (5/32")
  • 4.8 (3/16")
Stainless Steel Avdel SR
  • 3.2 (1/8")
  • 4.0 (5/32")
  • 4.8 (3/16")
Avinox
  • 3.2 (1/8")
  • 4.0 (5/32")
  • 4.8 (3/16")
Monobolt
  • 4.8 (3/16")
Q Rivet
  • 3.2 (1/8")
  • 4.0 (5/32")
  • 4.8 (3/16")
Stavex
  • 3.2 (1/8")
  • 4.0 (5/32")
  • 4.8 (3/16")
Standard Breakstem BD Series, N Rivet
  • 3.2 (1/8")
  • 4.0 (5/32")
  • 4.8 (3/16")
Steel Avdel SR
  • 3.2 (1/8")
  • 4.0 (5/32")
  • 4.8 (3/16")
Avex Splined
  • 4.0 (5/32")
  • 4.8 (3/16")
Avibulb
  • 3.2 (1/8")
  • 4.0 (5/32")
  • 4.8 (3/16")
Earth Tab Rivet
  • 4.0 (5/32")
Interlock
  • 4.8 (3/16")
Monobolt
  • 4.8 (3/16")
Q Rivet
  • 3.2 (1/8")
  • 4.0 (5/32")
  • 4.8 (3/16")
Stavex
  • 3.2 (1/8")
  • 4.0 (5/32")
  • 4.8 (3/16")
T-Lok
  • 4.3
  • 4.8 (3/16")
Standard Breakstem BD Series, N Rivet
  • 3.2 (1/8")
  • 4.0 (5/32")
  • 4.8 (3/16")

Contact Us

Call Avdel Tools at (866)748-3876 or contact us online for pricing and shipping information on our Avdel 71213 & 71214 Genesis nG2 rivet tool.
